DVR Ango.. H.264 stand alone DVR 5008A-B 8ch รับประกัน 1ปี

DVR Ango H.264 stand alone DVR 5008A-B 8ch รับประกัน 1ปี


รายละเอียด

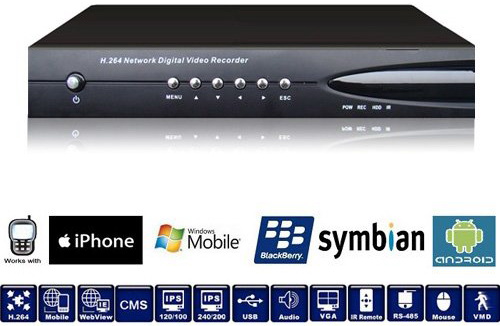

H.264 stand alone DVR 5008A-B

200/240fps recording for CIF,50/60fps recording for D1
support 2channels realtime D1+6ch realtime CIF or 8ch realtime full CIF

System Main Processor High performance embedded microprocessor
Operating System Embedded LINUX
System Resources Pentaplex function:live,recording,playback,backup & remote access
User Interface GUI,on-screen menu tips
Control Device Front panel,USB mouse,IR remote control
Video Video Standards PAL 625 line,50 f/s;NTSC 525 line,60 f/s
Video Compression H.264 main profile
Video Recording D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s;
Motion Detection Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)
Trigger recording,PTZ movement,tour,alarm,e_mail & FTP
TV Output Audjustment Adjust TV output color & display zone
Audio Audio Conpression G711A
Bidrectional Talk Support
Record &
Playback Recording Mode Manual>Alarm>Video Detection>Continuous
Playback 8 channel playback simultaneously,
Pause,stop,rewind,fast play,slow play,next file,previous file,repeat,shuffle,backup selection
Search Mode Time/Date,Alarm,Motion Detection & exact search(accurate to second)
Storage &
Backup Space Occupation Audio28.8MB/H Video150-200 MB/H
HDD Management Hard disk hibernation technology,HDD faulty alarm & Raid(Redundancy)
Backup Mode Network download/Flash stick
Interface Video Input 8 channel,BNC,1.0Vp-p,75?
Video Output 1 channel TV output BNC,1.0Vp-p,75?,1 VGA output
Audio Input 1 channel ,RCA, 200-2800mV,30K?
Audio Output 1 channel ,RCA, 200-3000mV,5K?
Net Interface RJ-45 (10M/100M)
USB Interface 2*USB2.0 ports
PTZ Control 1 RS485
SD Interface N/A
Hard Disk 1 SATA port(Max 2048G)
Environmental Power Supply 12V/4A
Power Consumption <10W
Working Temperature 0-55
Working Humidity 10%-90%
Atmosphere Pressure 86kpa-106kpa
Dimension Packing size 390*302*130mm
Weight 2.5KG
Mounting Desktop
