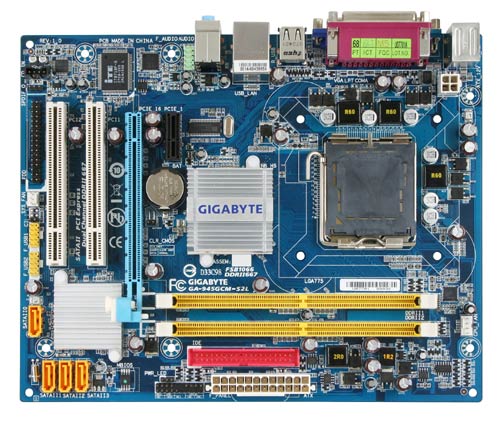

GIGABYTE GA-945GCM-S2L ore

  RSS Processor Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™2 Duo processor/Intel® Pentium® D processor/ Intel® Pentium® 4 processor/ Intel®Celeron® processor in the LGA 775 package (Go to GIGABYTE's website for the latest CPU support list.) Support for Intel® Hyper-Threading Technology L2 cache varies with CPU Front Side Bus (1333)/1066/800/533 MHz FSB Chipset North Bridge: Intel® 945GC Express Chipset South Bridge: Intel® ICH7 Memory 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory Dual channel memory architecture Support for DDR2 667/533/400 MHz memory modules (Go to GIGABYTE's website for the latest memory support list.) * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount. Onboard Graphics Integrated in the North Bridge Audio Realtek ALC662 codec High Definition Audio 2/4/5.1-channel Support for S/PDIF Out Support for CD In LAN RTL 8111C chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot 1 x PCI Express x1 slot 2 x PCI slots IDE ATA South Bridge: 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices iTE IT8718 chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive USB Integrated in the South Bridge Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x floppy disk drive connector 1 x IDE connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x chassis intrusion header 1 x power LED header Rear Panel I/O 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/Line Out/Microphone) I/O iTE IT8718 chip H/W Monitoring System voltage detection CPU temperature detection CPU/System fan speed detection CPU overheating warning CPU/System fan fail warning CPU fan speed control BIOS 1 x 4 Mbit flash Use of licensed AWARD BIOS PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b Unique Features Support for @BIOS Support for Download Center Support for Q-Flash Support for EasyTune Support for Xpress Install Support for Xpress Recovery2 Support for Virtual Dual BIOS Bundle Software Norton Internet Security (OEM version) Operating System Support for Microsoft® Windows Vista/XP/2000 (Go to GIGABYTE's website for operating system support information.) Form Factor Micro ATX form factor; 24.4cm x 19.3cm              สนใจโทร    0841315048  0840013886 ใหญ่ หรือสั่งซื้อได้ที่ www.vnppower.com  ร้านวีเอ็นพีเพาเวอร์  สินค้ามือสองรับประกัน 1 เดือน
