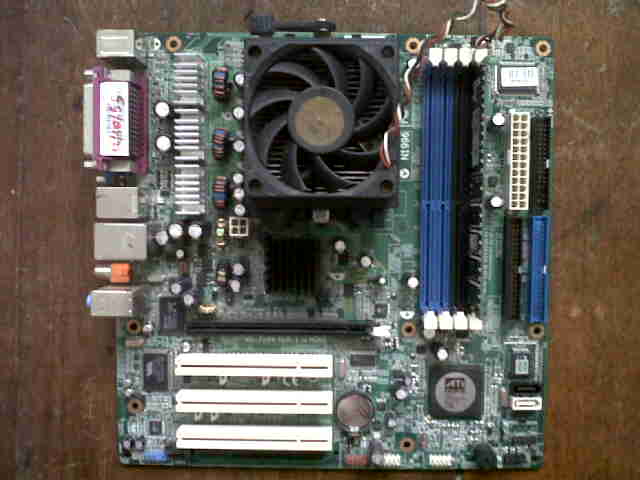

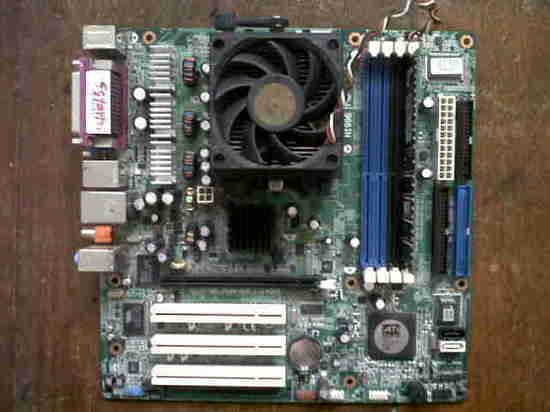

mainboard 939

  Part / Feature Specification / Support Motherboard description Motherboard manufacturer's name: MSI MS-7184 HP/Compaq name: AmethystM-GL6E CPU/Processor Socket: 939 Supports AMD Athlon 64 X2 (up to 4800+) and Sempron (up to 3200+) processors System bus 2000 MegaTransfers/second or 1600 MegaTransfers/second depending on the processor Chipset Northbridge: ATI RS482 Southbridge: ATI SB400 BIOS features The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications Supports boot from LAN, USB Device 1.1 & 2.0, and SATA HDD Form factor Micro-ATX: 24.4cm X 24.4cm Memory Four 184-pin DDR DIMM sockets Supports dual channel, eight memory banks DDR 333/400 DDR DIMMs Supports 2.5v DDR SDRAM DIMMs Maximum HP/Compaq approved memory is 4 GB* without ECC NOTE: *Actual available memory may be less. Expansion slots One PCI Express x16 graphics Three PCI One SCSI connector for PCI Extender Card for two additional PCI slots (optional) Video graphics Integrated Serial ATA 2 SATA connectors Each connector supports 1 serial ATA-150 disk drive Onboard audio or audio card Controller: AC-97 Realtek ALC658C 6-channel CODEC chipset Location: Integrated Onboard LAN Realtek 8100C 10/100 Mbps Fast Ethernet controller Back panel I/0 One PS/2 mouse One PS/2 keyboard One VGA One Parallel One IEEE 1394 One RJ-45 networking port Three audio connectors: line in, line out, and microphone Four USB (2.0) One S/PDIF out Internal connectors One floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes Two IDE connectors for up to four IDE devices Two serial ATA ports for up to two SATA devices One PCI Express x16 graphics slot Three PCI slots One PCI extender board connector Four USB 2.0 ports on two headers One CD audio input header One auxiliary audio input header One headphone-out header One IEEE1394a header One CPU fan connector One system (chassis) fan connector
