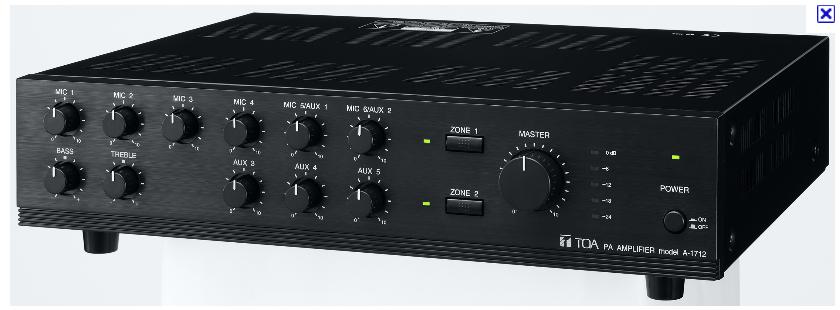

Mixer Power Amplifier ยี่ห้อ TOA รุ่น A-1712 ขนาด 120 Watt

Mixer Power Amplifier ยี่ห้อ TOA รุ่น A-1712 ขนาด 120 Watt "ของใหม่100%"ราคา12000.-ติดต่อ พรเทพ  022512637


     SPEC   TOA  A-1712 (120W)
 Power Source     AC mains 50/60Hz)
Output     120W
Power Consumption     258W (rated output), 105W (EN60065)
Frequency Response     50 - 20,000Hz ±3dB
Distortion     Under 2% at 1kHz, rated power
Input     MIC 1 - 6: -60dB*, 600Ω, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack
AUX 1 - 2: -20dB*, 600Ω, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack
(Either MIC 5 or AUX 1, and either MIC 6 or AUX 2 selectable)
AUX 3 - 4: -20dB*, 10kΩ, unbalanced, RCA pin jack
AUX 5: -20dB*, 10kΩ, unbalanced, combined type of XLR-3-31 equivalent and phone jack
PWR AMP IN: 0dB*, 600Ω, unbalanced, RCA pin jack
An equalizer or other signal processor connectable between LINE OUT and PWR AMP IN terminals)
Output     REC: 0dB*, 600Ω, unbalanced, RCA pin jack
LINE: 0dB*, 600Ω, unbalanced, RCA pin jack
SPEAKER SELECTOR: 2 zone, high impedance
(100V line/83Ω), individual selector key, M4 screw terminal
DIRECT SPEAKER OUT:
High impedance (100V line/83Ω),M4 screw terminal
Low impedance (4 - 16Ω), M4 screw terminal
(Both Low and High impedance terminals cannot be used at the same time.)
Phantom Power     ON or OFF for each MIC 1 - 6 with switch setting
S/N ratio
(Band Pass: 20 - 20,000Hz)     Over 100dB (Master volume: min)
Over 76dB (Master volume: max)
Over 60dB (MIC 1 - 4))
Over 53dB (MIC 5, 6)
Over 76dB (AUX 1 - 5)
Tone Control     Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Control Input     REMOTE VOLUME: M3 screw terminal
POWER REMOTE: No-voltage make contact input, open voltage: 24V DC (when the unit's power is OFF), short-circuit:

under 10mA, M3 screw terminal
Indicator     5 point LED output level meter,
Power indicator LED,
Zone indicator LED
Operating Temperature     -10ºC - +40ºC
Finish     Panel: ABS resin, black, hair line
Case: Steel plate, black
Dimensions     420 (W) x 107.7 (H) x 367 (D)mm
Weight     12.6kg
Accessory     Power cord x 1,
Terminal block cover x 1,
Terminal block cover mounting screw x 2
Option     Rack mounting bracket: MB-25B,
Volume control cover: YA-920.
      Note* Note: Distance between barriers on the above screw terminals; M3 = 7mm, M4 = 9mm
      * 0dB = 1V
